Fast Cycling
0.6–1.5 m/s opening speed helps reduce waiting at busy passages.
High Speed Doors · PVC Series

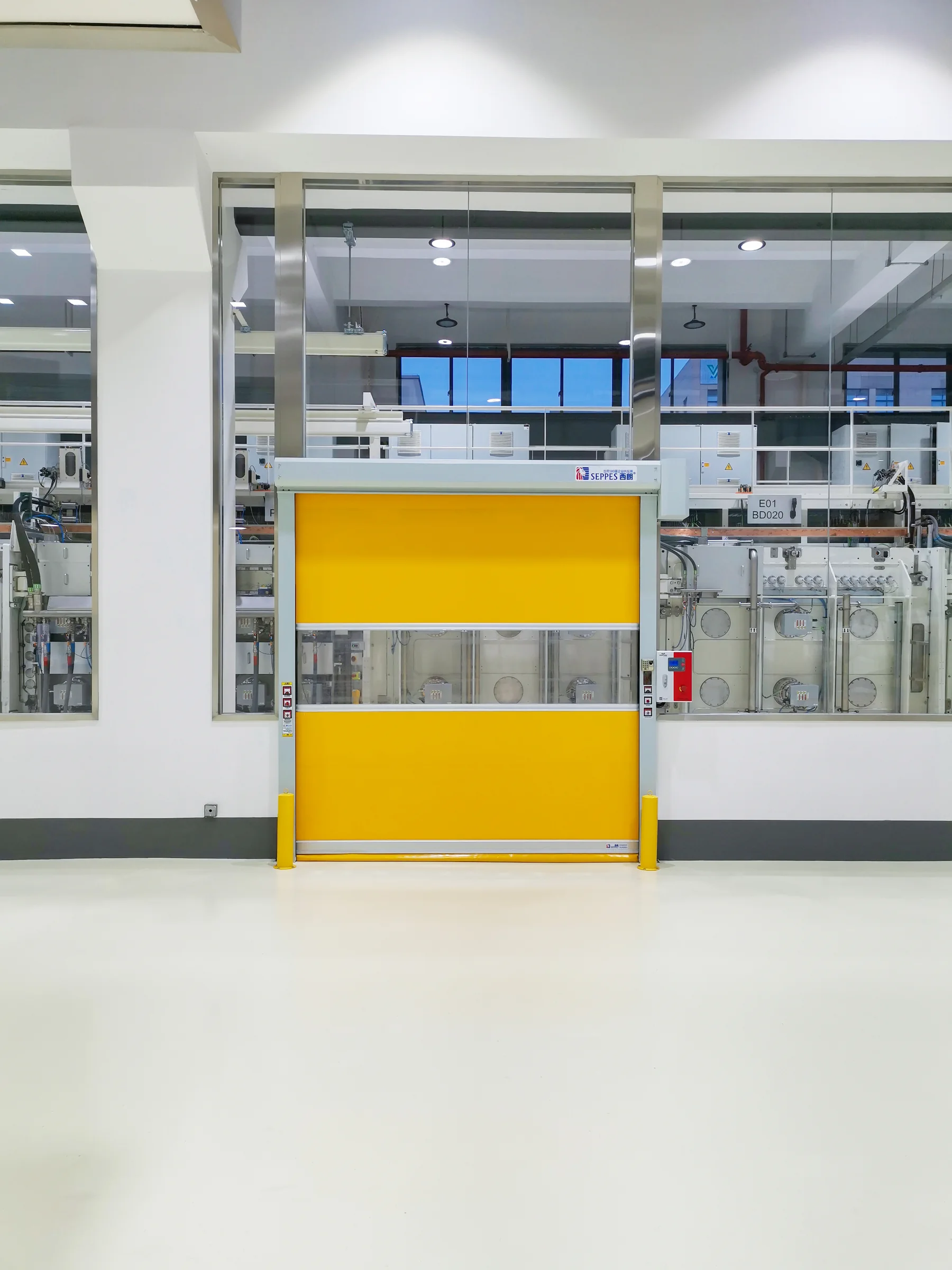

High Speed Roll Up Door
Explore a rapid PVC door system by opening size, traffic frequency, environmental separation, activation method and control interface.
Opening speedUp to 1.5 m/s
Maximum size5.8 × 6.0 m
CertificationCE certified
Built for daily flow
Speed Where the Process Needs It
A practical rapid door for interior production and logistics openings.The flexible PVC curtain, variable-frequency drive and configurable activation methods support repeated cycles while brush seals and a U-shaped bottom pocket help limit dust, insects and air exchange.
Review technical dataFlexible Separation
PVC curtain options include solid, transparent, mesh and ventilated finishes.
Safer Movement
Infrared photocell protection monitors the doorway during operation.
Ready to Integrate
Standard button control with reserved I/O terminals and RS-485 communication.
Product details
Engineered in Every Component
Key parts are selected and assembled as one coordinated rapid-door system for stable movement, sealing and safe daily operation.
01
Visual Servo Control System
The controller combines a clear operating display, status feedback, parameter adjustment and an emergency-stop function in one protected enclosure.
02

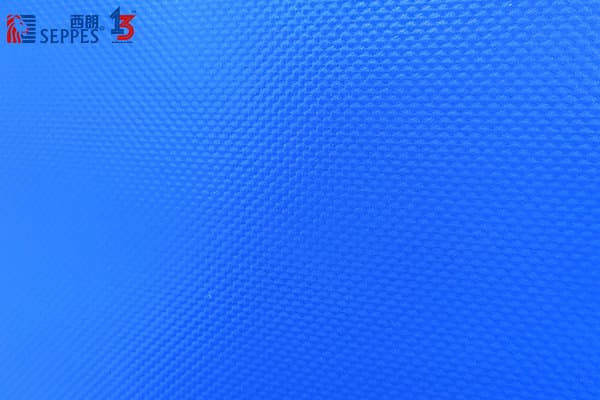

High-Strength PVC Curtain
Wear-resistant PVC fabric provides a flexible separation surface with solid colours and transparent vision sections available for the application.
03

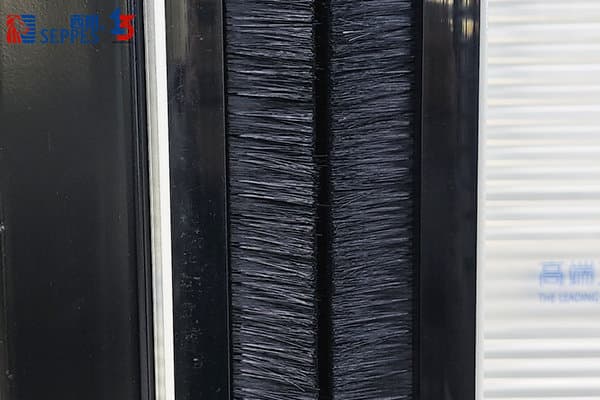

Dense Nylon Side Brushes
Closely arranged nylon brushes guide the curtain while helping reduce dust, insects and uncontrolled air exchange around the side tracks.
04
Infrared Safety Photocell
The protected photocell monitors the passage and sends a safety signal when a person, vehicle or object is detected in the doorway.
05

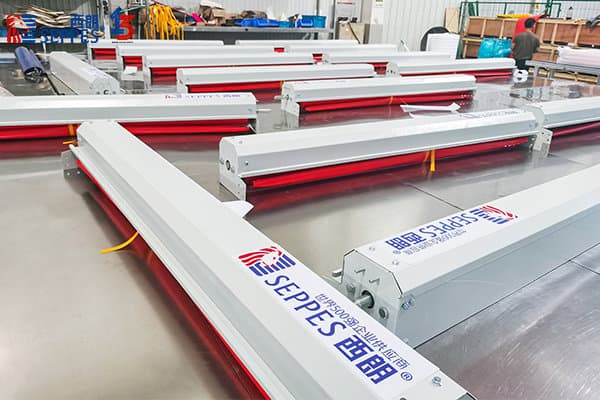

Precision-Formed Frame
Laser-cut and formed steel components improve dimensional consistency, simplify assembly and support dependable long-term operation.
06

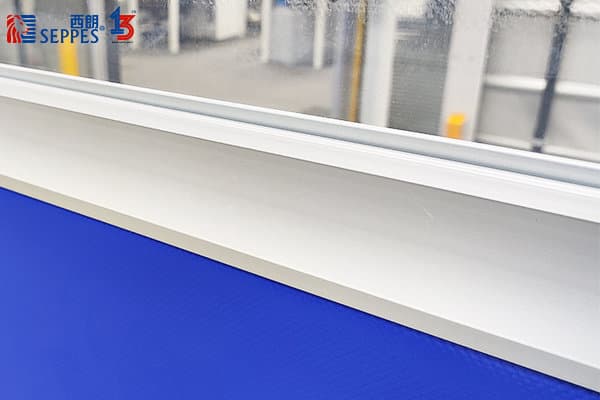

Aluminium Wind-Resistance Bar
High-strength aluminium profiles reinforce the flexible curtain and help the door remain stable under the specified operating conditions.
Working principle
How the Rapid Door Operates
The activation device, controller, motor, curtain and safety sensors work together as one coordinated entrance system.
Detect
A radar, button, pull cord or equipment signal sends an opening request.
Open Fast
The variable-frequency drive lifts the PVC curtain at a controlled rapid speed.
Protect
The infrared photocell monitors the passage while traffic moves through.
Close & Seal
The curtain returns to its closed position to restore separation.
Project planning
Conditions to Confirm Before Selection
A reliable configuration starts with verified site conditions, not only the product name.
- Finished opening
- Width, height and surrounding construction
- Traffic pattern
- Pedestrians, forklifts, AGVs or equipment
- Operating frequency
- Expected cycles per hour and per day
- Environment
- Dust, insects, temperature, wind and pressure
- Activation
- Button, radar, pull cord or automatic signal
- Control interface
- I/O terminals, RS-485 and access control
System and parameters
Standard Configuration
Confirm whether the project requires a complete door, selected controls or a customized interface. The final proposal defines every inclusion.
- Made-to-measure production
- Left- or right-hand motor layout
- Multiple curtain colours available
- Remote installation guidance
Concise Parameter Reference
- Opening speed
- 0.6–1.5 m/s
- Maximum size
- 5,800 × 6,000 mm
- Curtain
- 0.8 mm PVC; 1.2 mm clear vision panel
- Wind resistance
- Grade 6–8 with aluminium wind bars
- Control system
- FROG PUPIL variable-frequency control
- Safety
- Autonics infrared photocell
- Power supply
- 220 V standard
- Motor power
- 0.75 / 1.5 / 2.2 kW by door area
- Frame finish
- Painted cold-rolled steel, RAL 7035
- Motor position
- Left or right
- Headroom
- 500 mm
- Side room
- 150 mm non-motor side; 400 mm motor side
Final size, motor power, operating speed, wind resistance and control functions must be confirmed against the opening and operating environment.
Application examples
High Speed Door Use Cases
See how rapid doors support different industrial workflows.
These examples illustrate common application directions. Final configuration still depends on the verified opening, traffic pattern and environmental requirements.
01
Automated Manufacturing Line
Rapid separation helps production equipment, operators and material flow move through high-frequency internal openings.
02
Warehouse & Logistics Passage
Fast opening and configurable activation support forklifts, carts and repeated goods movement between warehouse zones.
03
Clean Production Area
A flexible PVC curtain and perimeter sealing help manage dust, insects and uncontrolled air exchange between work areas.
Typical applications
One Door, Multiple Workflows
Best suited to frequent internal traffic and controlled separation.
Activation can be configured around people, forklifts, AGVs or process equipment.
Manufacturing lines
Configure the curtain, sensor and opening method around the traffic pattern and environmental requirement.
Logistics passages
Configure the curtain, sensor and opening method around the traffic pattern and environmental requirement.
Food processing
Configure the curtain, sensor and opening method around the traffic pattern and environmental requirement.
Clean production areas
Configure the curtain, sensor and opening method around the traffic pattern and environmental requirement.
Manufacturing and support
From Configuration to Export Delivery

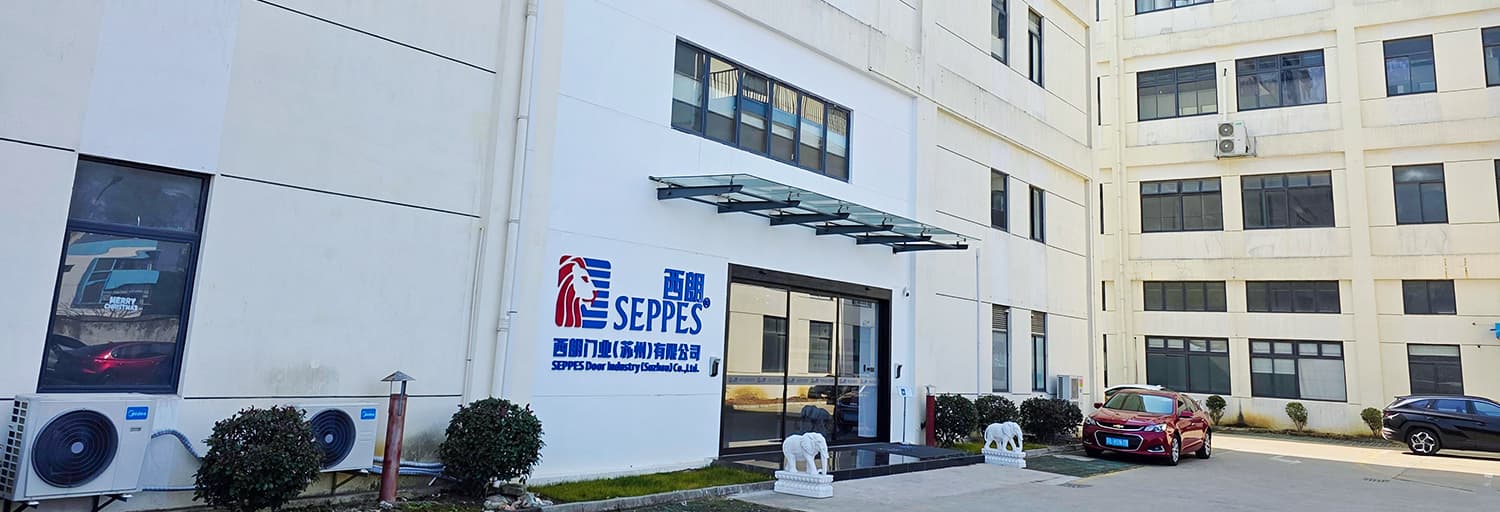

SEPPES coordinates opening review, customized production, inspection, packaging, technical documents and remote support for global industrial projects.
Custom engineering and OEM/ODMManufacturing and quality inspectionExport packaging and spare partsRemote installation support
FAQ
High Speed Roll Up Door Questions
Use these answers for early planning, then confirm the final configuration in the project proposal.
What information is needed for a quotation?
Send the finished opening width and height, quantity, application, traffic type, operating frequency, project location and available photos.
Can the door size and curtain colour be customized?
Yes. Door dimensions are made to measure, and multiple solid, transparent, mesh and ventilated curtain options are available.
Can the door connect with an AGV or production line?
Yes. The standard control design reserves I/O terminals and RS-485 communication for agreed automation interfaces.
What safety protection is included?
The standard reference configuration includes an infrared photocell. Additional devices can be reviewed for the application.
