Rapid Operation
Adjustable high-speed movement supports frequent industrial traffic and shorter waiting times.
High Speed Doors · Insulated Aluminium Series
High Speed Spiral Door
A rapid rigid door that combines high-frequency operation, thermal separation, wind resistance and controlled exterior access.
Opening speedUp to 2.0 m/s
Panel thickness40 mm
Design lifeApprox. 1 million cycles
Rapid, rigid and insulated
Exterior Speed Without Giving Up Protection
Designed for demanding factory, warehouse and logistics openings.Double-skin aluminium slats with a high-density polyurethane core travel into a non-contact spiral track. The servo drive and torque-balancing design support smooth high-cycle movement while helping reduce air exchange and energy loss.
Review technical dataInsulated Slats
Lightweight 40 mm aluminium panels combine impact strength with thermal separation.
Active Safety

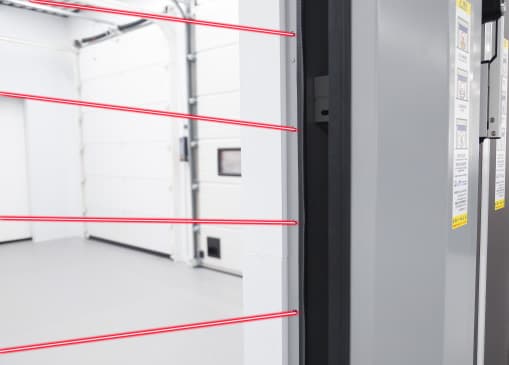

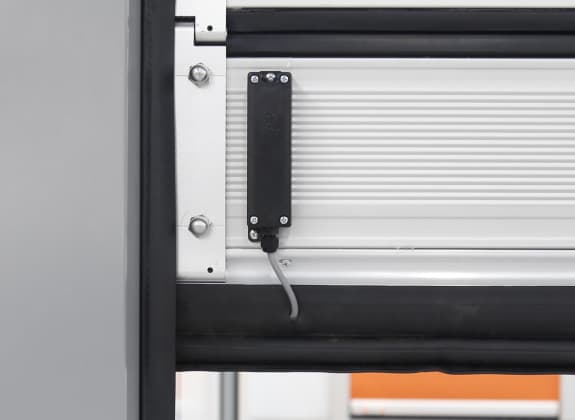

Light curtains, wireless safety edges and emergency release options protect shared openings.

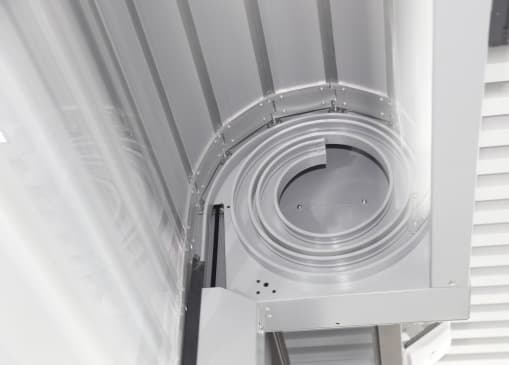

Quiet Spiral Track
Non-contact panel guidance reduces friction, mechanical vibration and operating noise.
Working principle
How the Spiral Door Operates
The activation device, intelligent drive, spiral track, safety sensors and rigid slats work as one coordinated entrance system.
Detect
Radar, access control or an equipment signal requests opening.
Accelerate
The servo drive lifts the rigid slats with controlled acceleration.
Monitor
Safety sensors watch the opening and reverse or stop the door when required.
Close & Insulate
The interlocking slats return to restore security and thermal separation.
Project planning
Conditions to Confirm Before Selection
A reliable configuration starts with verified site conditions, operating requirements and the intended workflow.
- Finished opening
- Width, height, headroom and side-room conditions
- Exterior exposure
- Wind, rain, temperature and building orientation
- Traffic frequency
- Vehicles, people and expected operating cycles
- Track arrangement
- Spiral, oval, L-type, vertical or project-specific layout
- Safety strategy
- Light curtain, safety edge, warning display and segregation
- Control interface
- Radar, access control, interlock or automation signal
System and parameters
Standard Configuration
The final proposal matches the spiral structure, drive, safety system and slat finish to the verified opening and operating environment.
- Made-to-measure production
- Project-specific configuration
- Export packaging and documents
- Remote installation guidance
Concise Parameter Reference
- Opening speed
- 0.8-1.5 m/s adjustable; selected systems up to 2.0 m/s
- Door panel
- Double-skin aluminium slats with polyurethane insulation
- Panel thickness
- 40 mm overall; 0.7 mm aluminium skins
- Drive system

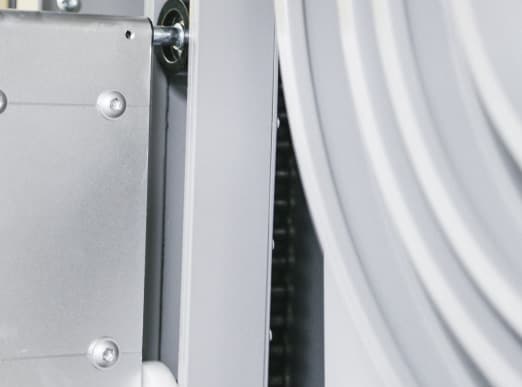

- Servo intelligent drive with torque-balancing system
- Track options
- Standard spiral, oval spiral, L-type and vertical
- Safety options

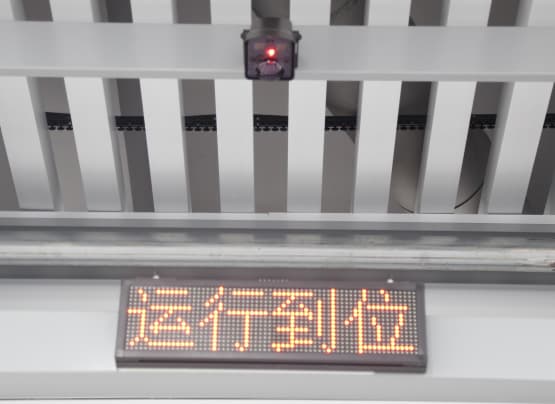

- Light curtain, wireless safety edge and traffic warning display
- Emergency operation
- Manual release for operation during a power failure
- Panel finish
- Project-specific colours and stainless-steel frame options
- Design life
- Approximately 1 million operating cycles
- Typical position
- Interior or exterior high-frequency industrial opening
Opening speed, structure, wind resistance, panel finish and safety devices are selected against the verified project conditions.
Typical applications
Designed Around Real Industrial Workflows
Best suited to high-frequency exterior openings that also need insulation and security.
The rigid panel and track arrangement can be configured around modern steel buildings, logistics routes and specialized industrial entrances.
Factory exterior entrances
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Logistics traffic routes
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Fire station openings
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
High-seal laboratories
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Manufacturing and support
From Configuration to Export Delivery
SEPPES coordinates opening review, customized production, inspection, packaging, technical documents and remote support for global industrial projects.
Custom engineering and OEM/ODMManufacturing and quality inspectionExport packaging and spare partsRemote installation support
FAQ
High Speed Spiral Door Questions
Use these answers for early planning, then confirm the final configuration in the project proposal.
Why choose a spiral door instead of a PVC rapid door?
Choose a spiral door when the opening also requires rigid security, thermal insulation and stronger exterior performance.
Which track structures are available?
Standard spiral, oval spiral, L-type and vertical arrangements can be reviewed according to the available installation space.

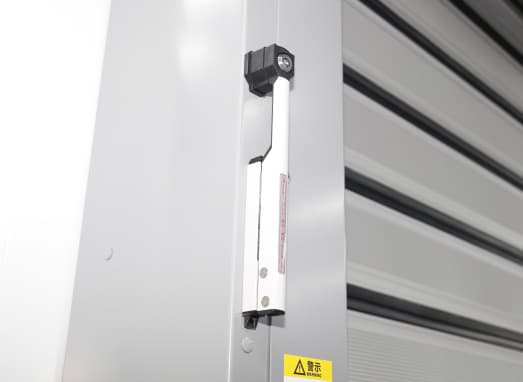

Can the door operate during a power failure?
A manual emergency release can disengage the drive so the balanced door can be operated when power is unavailable.
Can safety and traffic guidance be customized?
Yes. Light curtains, wireless safety edges, radar segregation and dynamic warning displays can be configured for the traffic pattern.
