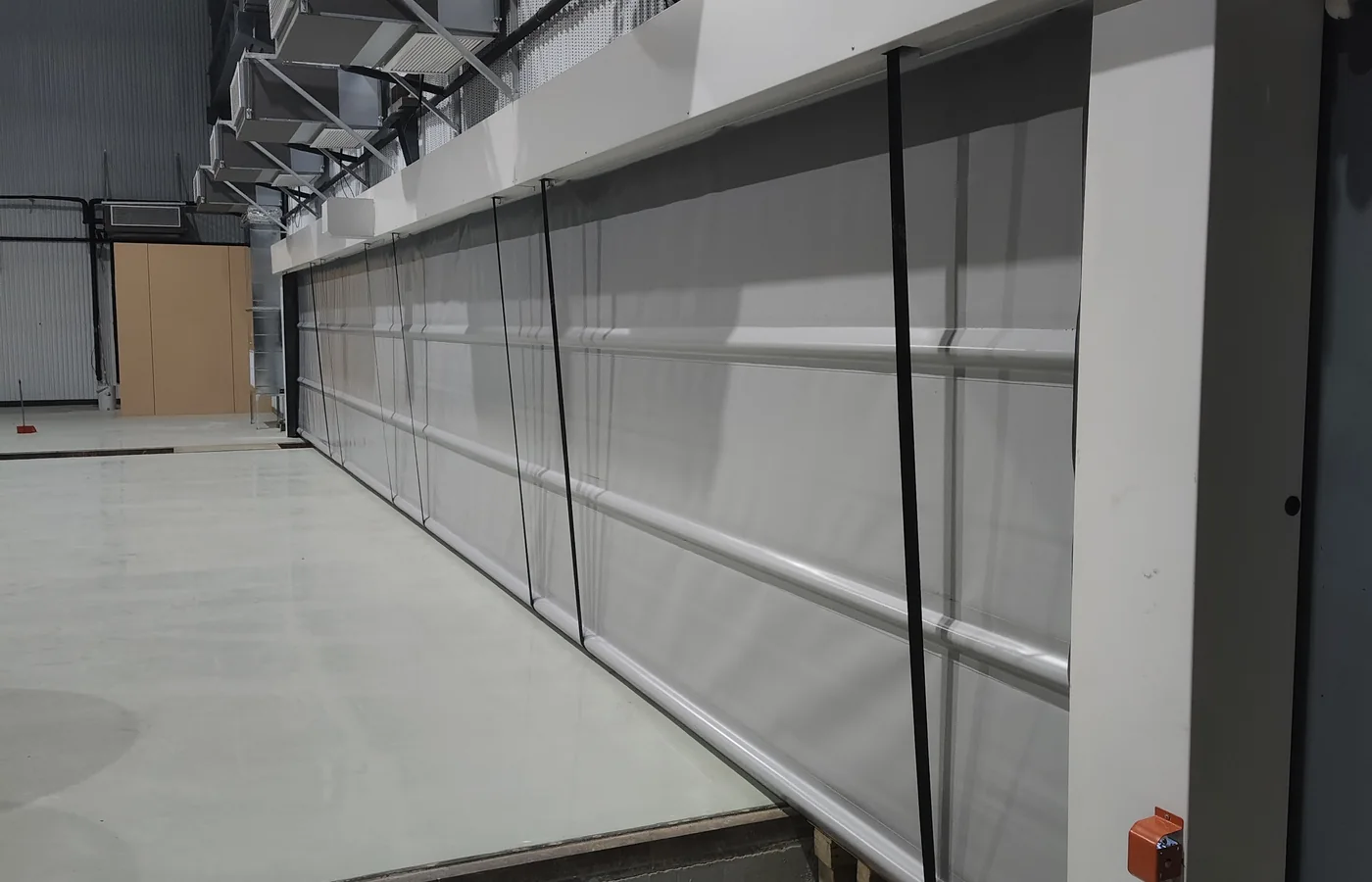

Reinforced Curtain
Horizontal members help stabilize the flexible curtain across the opening.
High Speed Doors · Reinforced Fabric Series
Stacking High Speed Door
A reinforced flexible door for wider industrial openings, frequent vehicle traffic and project-specific wind exposure.
Opening speed0.6–1.2 m/s
Maximum sizeUp to 10 × 10 m
Wind resistanceGrade 11 reference
Wide-opening access
Stabilize a Flexible Curtain Across a Larger Opening
Choose a stacking design when a flexible high-speed entrance needs added horizontal reinforcement.Reinforcement bars divide the curtain into stable sections while the lifting system stacks the fabric above the opening. Final size, wind resistance, speed and structure must be confirmed for the actual building and traffic route.
Review technical dataTraffic Efficiency
Automatic activation can reduce waiting on busy vehicle routes.
Safety Strategy
Detection and warning devices are selected around the shared opening.
Project Integration
Controls can coordinate with access systems and facility signals.
Working principle
How a Stacking Door Operates
The drive raises the reinforced curtain in folded sections while guides control its movement at both sides.
Detect
The selected device requests opening.
Lift
The drive stacks curtain sections above the opening.
Monitor
Safety devices supervise the traffic zone.
Close
The curtain returns under controlled guidance.
Project planning
Conditions to Confirm Before Selection
A reliable configuration starts with verified site conditions, operating requirements and the intended workflow.
- Opening and structure
- Confirm clear size, headroom, side room and mounting steel.
- Wind exposure
- Record indoor or outdoor position, pressure and building orientation.
- Traffic
- Define vehicles, people, approach speed and operating frequency.
- Controls
- Document activation, safety and interface logic.
System and parameters
Standard Configuration
Every stacking door is selected against verified opening and operating conditions.
- Made-to-measure production
- Project-specific configuration
- Export packaging and documents
- Remote installation guidance
Concise Parameter Reference
- Door type
- Reinforced flexible stacking high-speed door
- Opening speed
- 0.6–1.2 m/s
- Maximum size
- Up to 10,000 × 10,000 mm and 110 m²; engineering confirmation required
- Curtain
- 0.8 mm curtain with 1.2 mm vision panel
- Reinforcement
- 30 mm steel tubes with 2 mm wall thickness
- Wind resistance
- Grade 11 reference; verify for final size and site
- Operating frequency
- Up to 800 cycles per day
- Installation space
- 1,000 mm headroom; 200 or 300 mm side space
- Activation
- Push button with reserved I/O and RS-485 interfaces
- Safety
- Infrared photocell
Request model-specific drawings and confirmed wind performance before procurement.
Typical applications
Designed Around Real Industrial Workflows
Suitable for wider production and logistics openings that need frequent access.
Final selection depends on wind, traffic, mounting structure and environmental separation.
Factory vehicle routes
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Logistics entrances
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Large internal openings
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Wind-exposed industrial access
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Application examples
Stacking High Speed Door Use Cases
See how the system supports different industrial workflows.
These examples show common application directions. Final configuration depends on the verified opening, traffic pattern and operating environment.
01

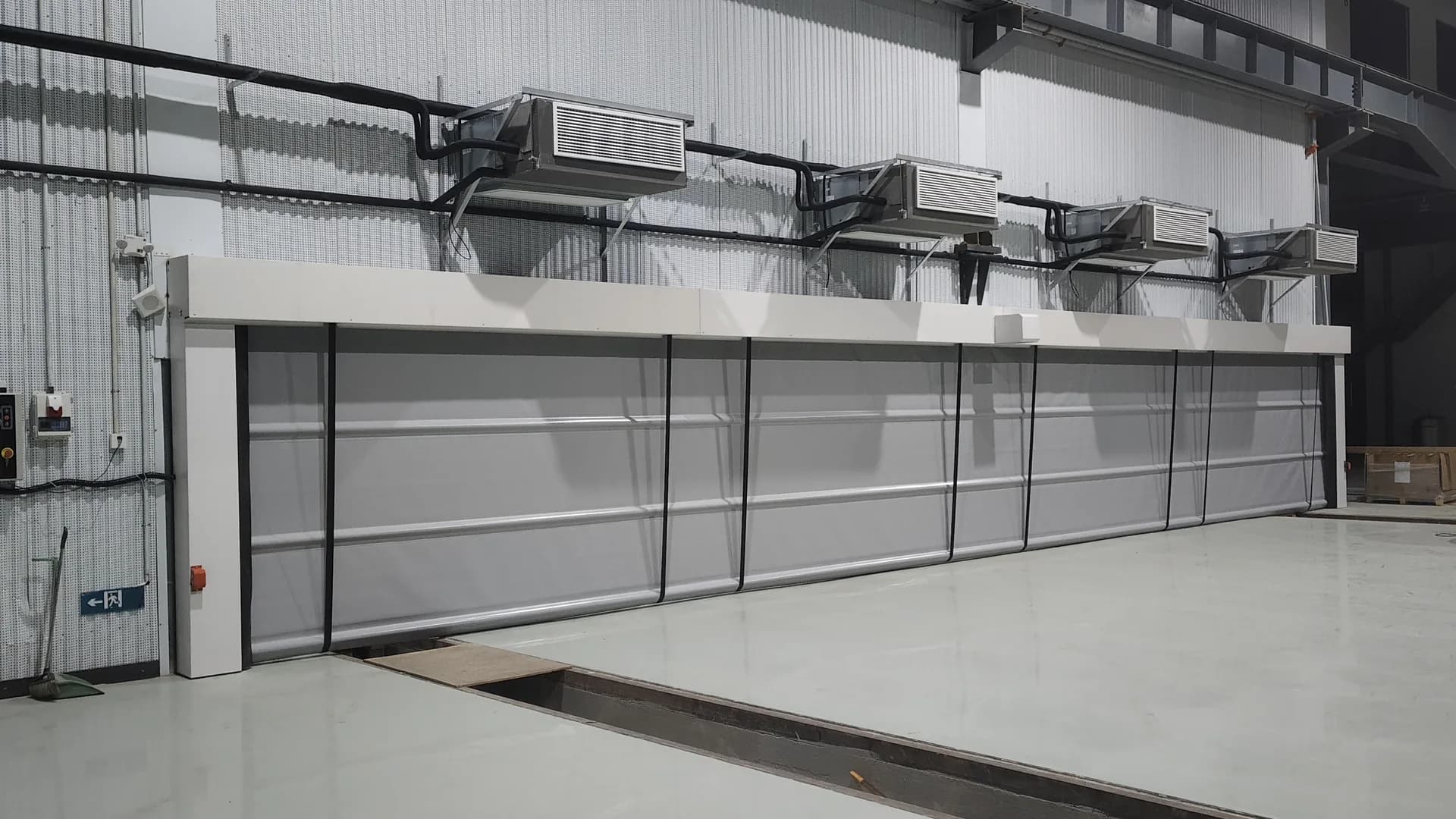

Wide Industrial Opening
Horizontal reinforcement and project sizing support frequent movement at larger production and logistics openings.
02
Production Traffic Route
Activation, safety sensing and controls are coordinated with the actual vehicle and pedestrian flow.
03
Wind-Exposed Access
The curtain, reinforcement and guides are selected against the confirmed opening and site exposure.
Manufacturing and support
From Configuration to Export Delivery
SEPPES coordinates opening review, customized production, inspection, packaging, technical documents and remote support for global industrial projects.
Custom engineering and OEM/ODMManufacturing and quality inspectionExport packaging and spare partsRemote installation support
FAQ
Stacking High Speed Door Questions
Use these answers for early planning, then confirm the final configuration in the project proposal.
When is a stacking door preferable?
It is a useful direction for larger flexible-door openings that need horizontal reinforcement; confirm wind and size requirements with engineering.
Can it be installed outdoors?
Outdoor suitability depends on the selected model, opening size, wind exposure, structure and controls.
Which activation methods are available?
Common choices include radar, loops, pull cords, access control and equipment signals, subject to the project design.
What information is needed?
Send opening dimensions, photos, traffic, indoor or outdoor position, wind conditions, quantity and project location.
