Compact Coil
Slats store above the opening around a barrel.
Roller Shutter Doors · Compact Coiling Series
Aluminium Roller Shutter Door
A compact coiling closure with interlocking aluminium slats for industrial and commercial access.
Opening speed0.1–0.25 m/s
Aluminium slats50 / 77 / 100 profiles
OperationPowered with manual chain
Compact closure
Use the Space Above the Opening
A roller shutter coils its slats around a barrel, keeping the side and ceiling area comparatively clear.The slat profile, guides, barrel, hood, finish and operating method are selected around the opening, usage and security requirement. It is a closure system for moderate access cycles rather than a substitute for a high-speed traffic door.
Review technical dataDurable Finish
Aluminium construction offers a clean, corrosion-conscious surface.
Access Options
Manual and powered arrangements can suit different operating needs.
Made to Measure
Guides, hood and slats are prepared for the confirmed opening.
Working principle
How the Roller Shutter Works
Interlocking slats travel inside side guides and coil around the overhead barrel.
Command
A switch, control or manual action starts movement.
Coil
The curtain rolls around the overhead barrel.
Guide
Side channels keep the slats aligned.
Close
The bottom rail returns to the finished threshold.
Project planning
Conditions to Confirm Before Selection
A reliable configuration starts with verified site conditions, operating requirements and the intended workflow.
- Opening
- Verify finished dimensions, headroom, side room and mounting surface.
- Usage
- Define access frequency and whether manual or powered operation is appropriate.
- Environment
- Confirm indoor or outdoor exposure and finish requirements.
- Controls
- Specify access devices, limits and safety provisions.
System and parameters
Standard Configuration
The shutter construction is configured around the verified opening and operating method.
- Made-to-measure production
- Project-specific configuration
- Export packaging and documents
- Remote installation guidance
Concise Parameter Reference
- Door type
- Aluminium interlocking-slat roller shutter
- Opening speed
- 0.1–0.25 m/s
- Aluminium slats
- Double-wall hollow profiles: 50 / 77 / 100 series
- Slat thickness options
- 0.5 / 0.6 / 0.8 / 1.0 / 1.2 mm
- Guide options
- 50 / 70 / 100 mm wide; 2.0 or 3.0 mm thick
- Operation
- Push button, remote control and emergency manual chain
- Wind reference
- Grade 8–10 up to 20 m²; Grade 5–8 at 20–40 m², subject to size and slat selection
- Maximum width
- Up to 12 m for aluminium; confirm feasibility before selection
- Installation space
- Varies by area: 500–700 mm headroom and 100–200 mm side allowance
Confirm slat profile, structural limits and intended cycle frequency in the approved proposal.
Typical applications
Designed Around Real Industrial Workflows
Best for compact closures where moderate access frequency and a coiling design suit the building.
Typical uses include service entrances, workshops, commercial back-of-house routes and industrial openings.
Workshop entrances
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Service access
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Commercial back-of-house
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Industrial closures
Configure the system around the opening, traffic pattern, building conditions and safety requirements.
Application examples
Aluminium Roller Shutter Door Use Cases
See how the system supports different industrial workflows.
These examples show common application directions. Final configuration depends on the verified opening, traffic pattern and operating environment.
01

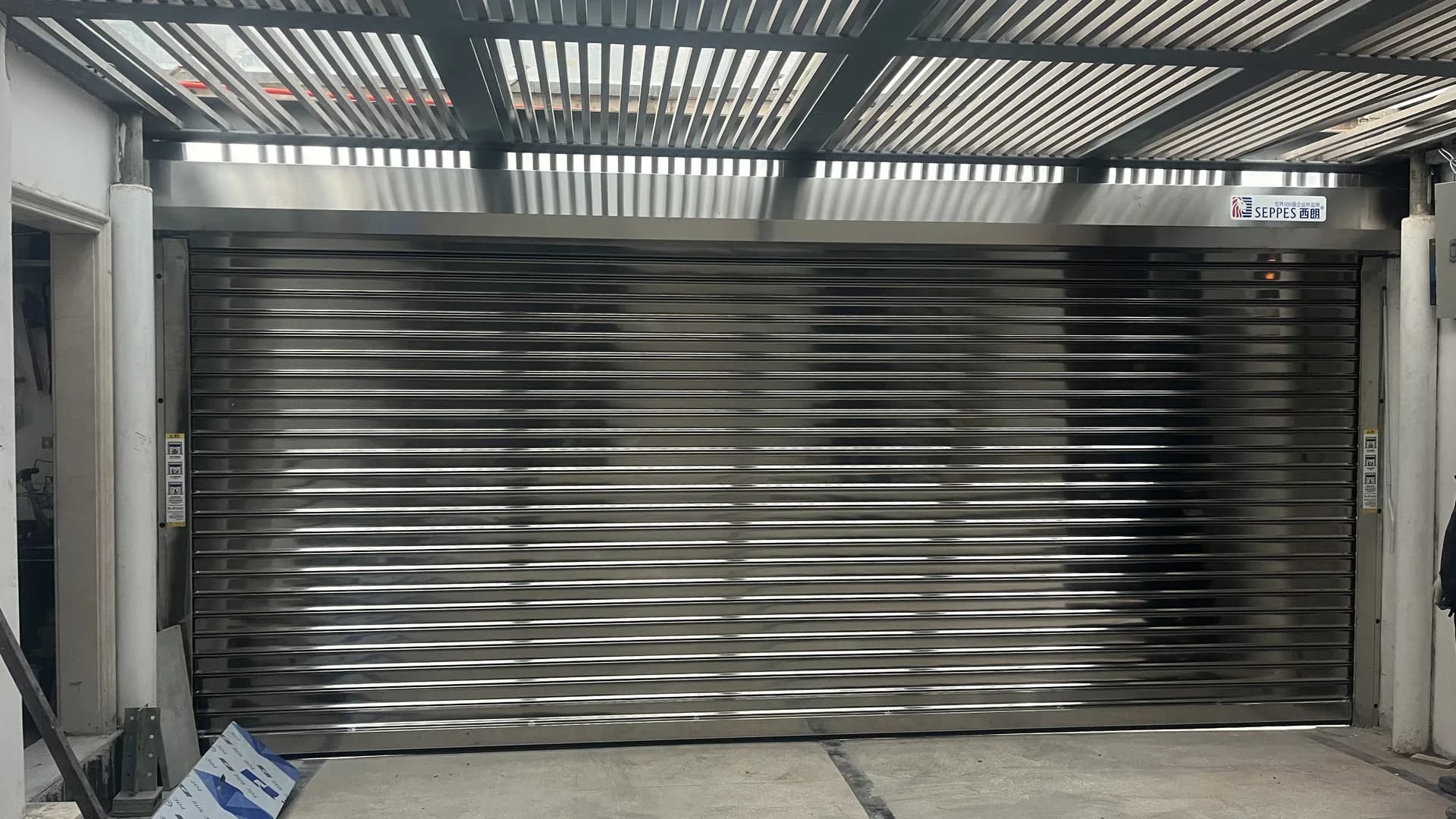

Compact Building Closure
Interlocking slats coil above the opening where a compact, secure closure is required.
02

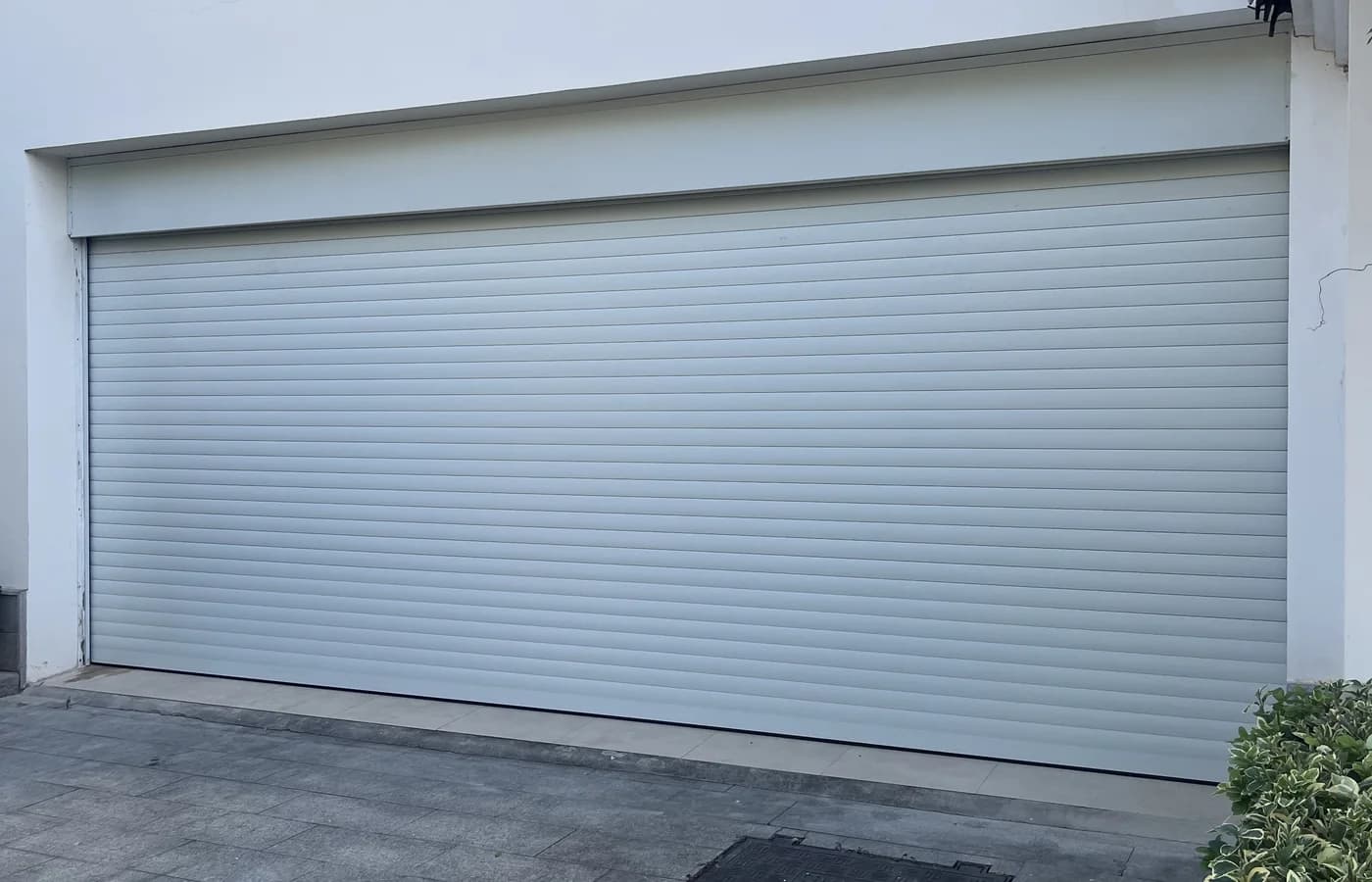

Industrial Access
Slat construction, finish, guide design and operation are configured around the building opening.
03
Service Entrance
Manual or powered operation can be reviewed for the traffic frequency and access-control requirement.
Manufacturing and support
From Configuration to Export Delivery
SEPPES coordinates opening review, customized production, inspection, packaging, technical documents and remote support for global industrial projects.
Custom engineering and OEM/ODMManufacturing and quality inspectionExport packaging and spare partsRemote installation support
FAQ
Aluminium Roller Shutter Door Questions
Use these answers for early planning, then confirm the final configuration in the project proposal.
Is this a high-speed door?
No. A conventional roller shutter prioritizes compact closure; choose a high-speed door for frequent rapid traffic.
Can it be motorized?
Powered operation can be configured where appropriate for the opening and use.
Can it be used outdoors?
Suitability depends on exposure, size, slat and guide design, structural support and local requirements.
What should I provide?
Send opening dimensions, photos, operating frequency, indoor or outdoor position, control preference and project location.
